63-4-TKG 4 frames, tangential honey extractor, motor and hand drive for all frame sizes
920 € without VAT and Transport
Do you have a question? Call us!
+36 20 215 0970

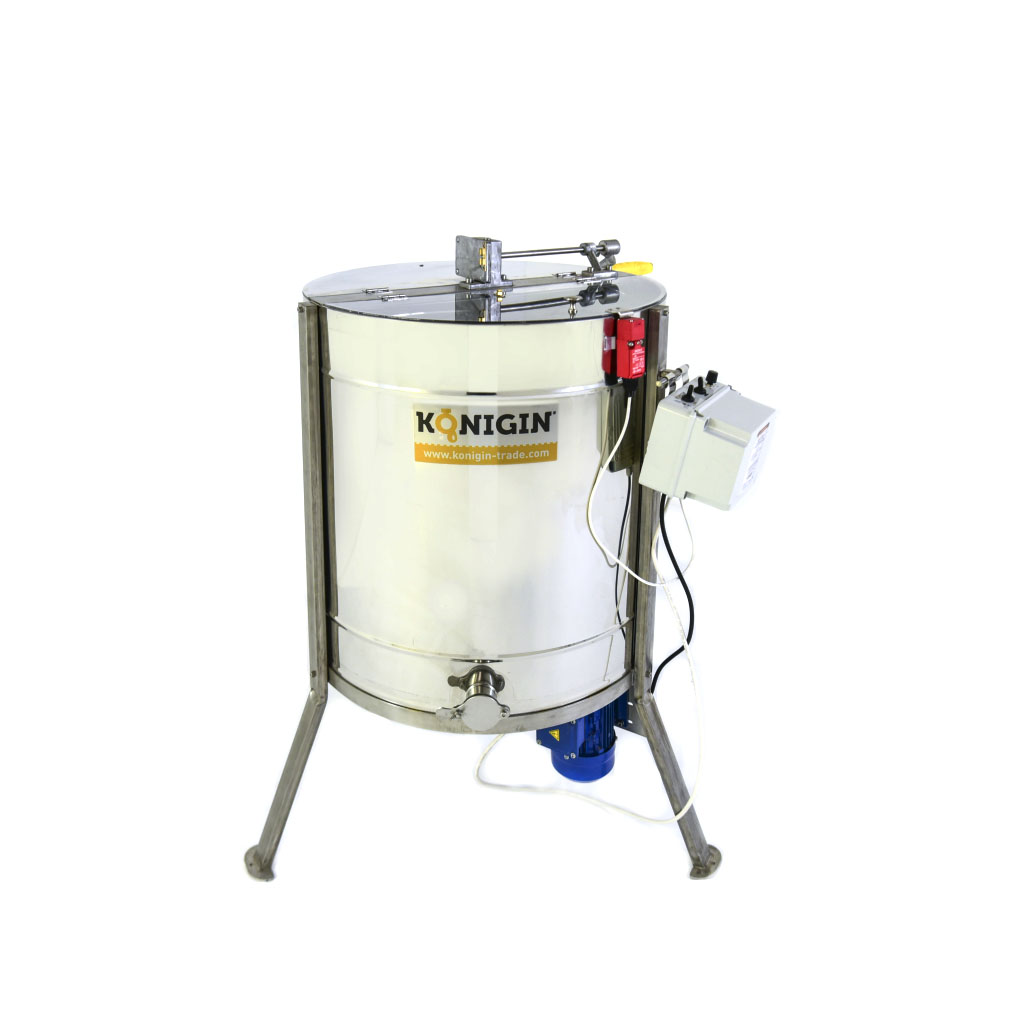

63-4 TKG 4-Frame Tangential Honey Extractor with Motor and Hand Drive—your versatile solution for honey extraction. This extractor accommodates all frame sizes until 370mm and offers the flexibility of both motorized and manual operation. Its high-quality stainless steel drum ensures durability and easy cleaning, while the dual drive options provide convenience and control. Perfect for beekeepers of all levels, this extractor combines efficiency and reliability, making honey harvesting easier and more enjoyable. Enhance your beekeeping with this adaptable, top-tier honey extractor.
| Frame height: | until 370 mm |
| Number of frames: | 4 |
| Material of the rotating basket: | 1.4301 |
| Diameter of the rotating basket: | It depends on the honey frame sizes |
| Outer diameter of the honey extractor (cm): | 63 |
| Height of the honey tap at standard feet (1000 mm): | 350 mm |
| Height of the mantle: | 650 mm |
| Material thickness of the bottom: | thickness 1,0 |
| Kind of material and thickness of the lid: | 1.4301, thickness 0,8 |
| Kind of material and thickness of the mantle: | 1.4301, thickness 0,7 |
| Kind of material and thickness of the hinge: | 1.4301, thickness 1,0 |

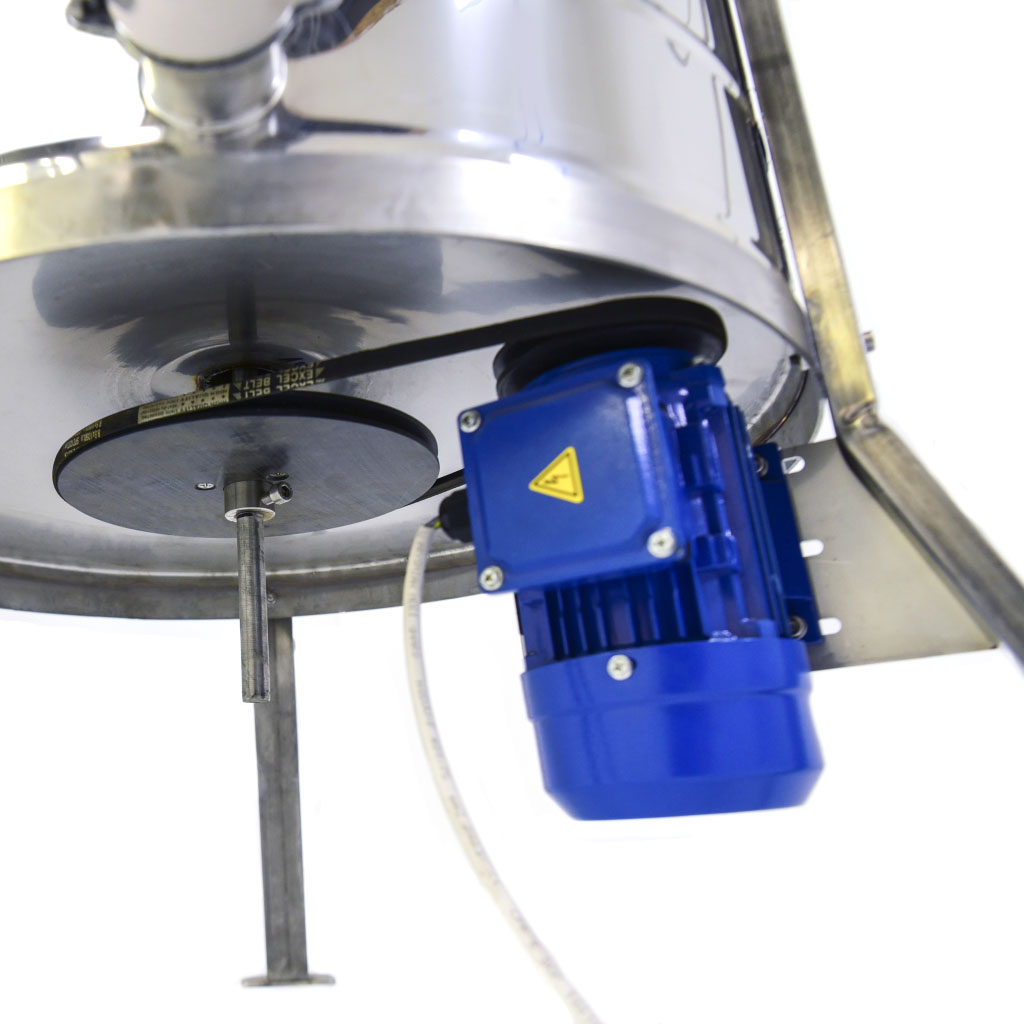

| Drive: | manually and 12 V or 230 V motor driven |
| Power: | 250 W |
| Rotation speed of the basket per minute: | 100 – 250 |
| Braking mode: | manually counter brake or programmed engine brake |

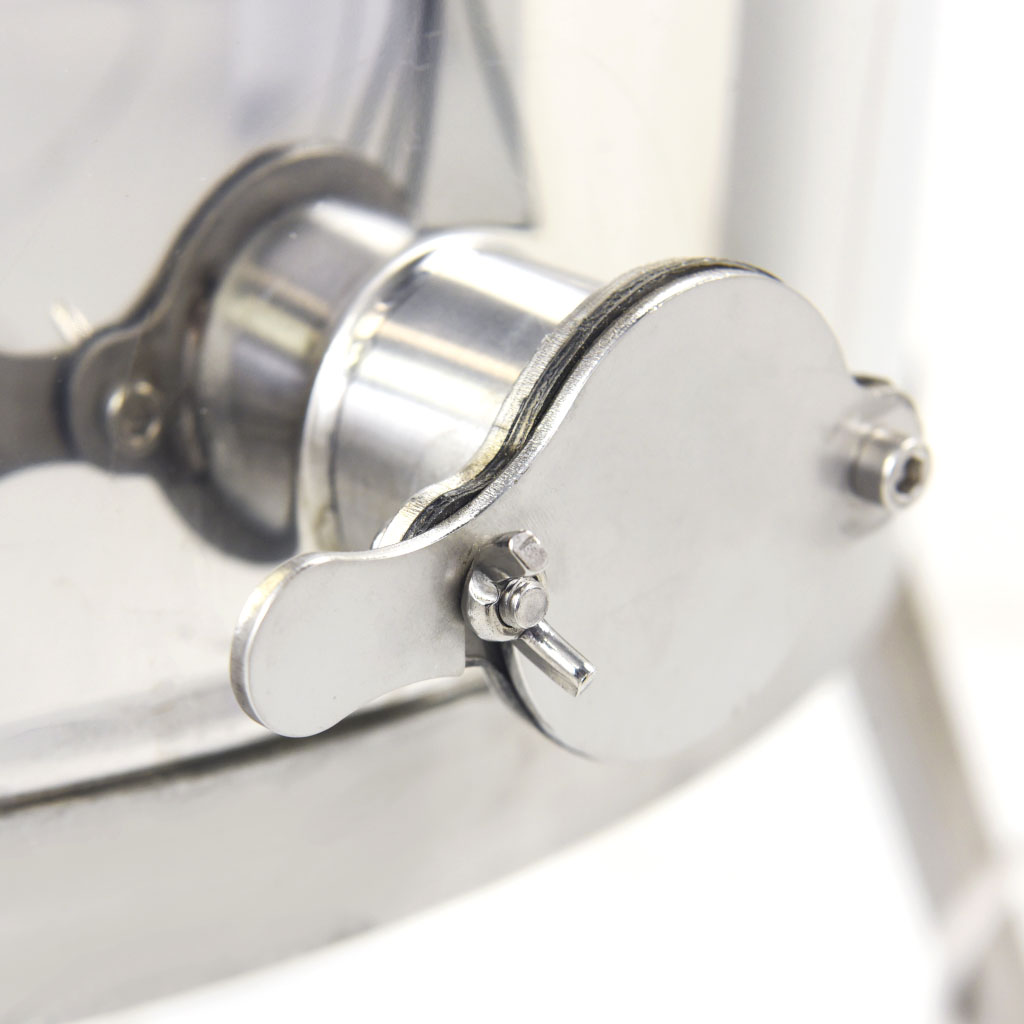

| Material of the honey tap: | stainless steel |

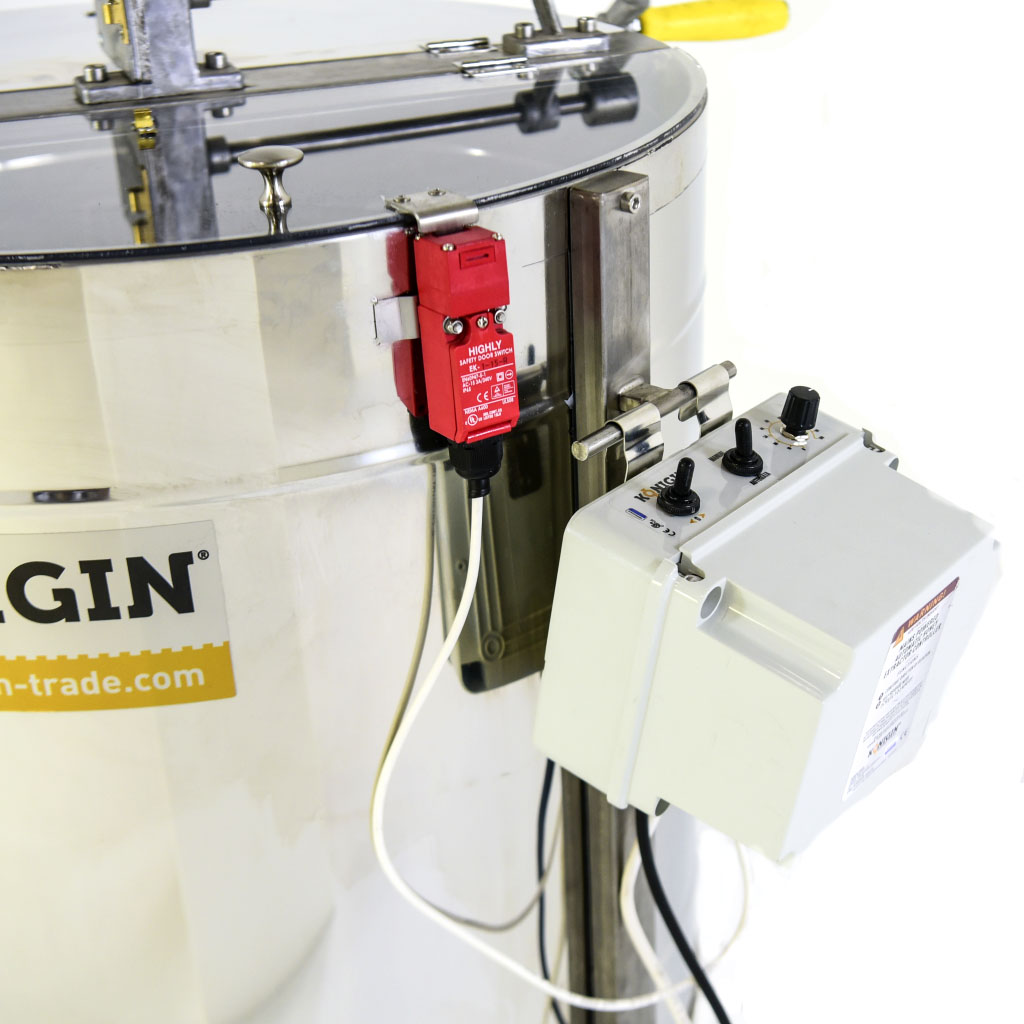

| Machine controlling: | full-automatic (pre-programmed timing) or semi-automatic (without programming) |
| Guarantee | 2 years |
| Weight: | 30 kg |
Frame size
(B) height of the frame
